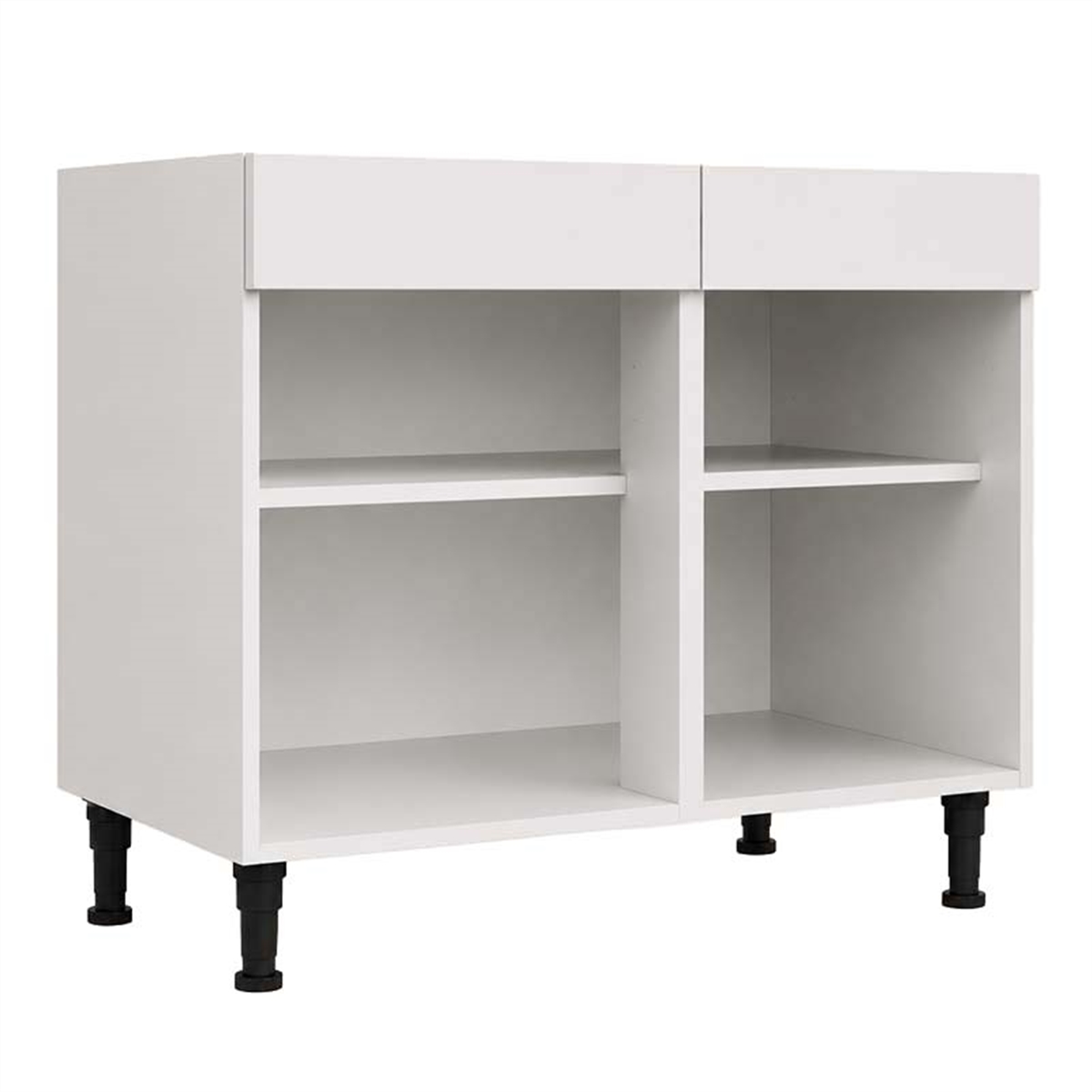

Drawerline Double Kitchen Base Unit Features:
- Rigid, pre-assembled kitchen cabinet for quicker and easier installation

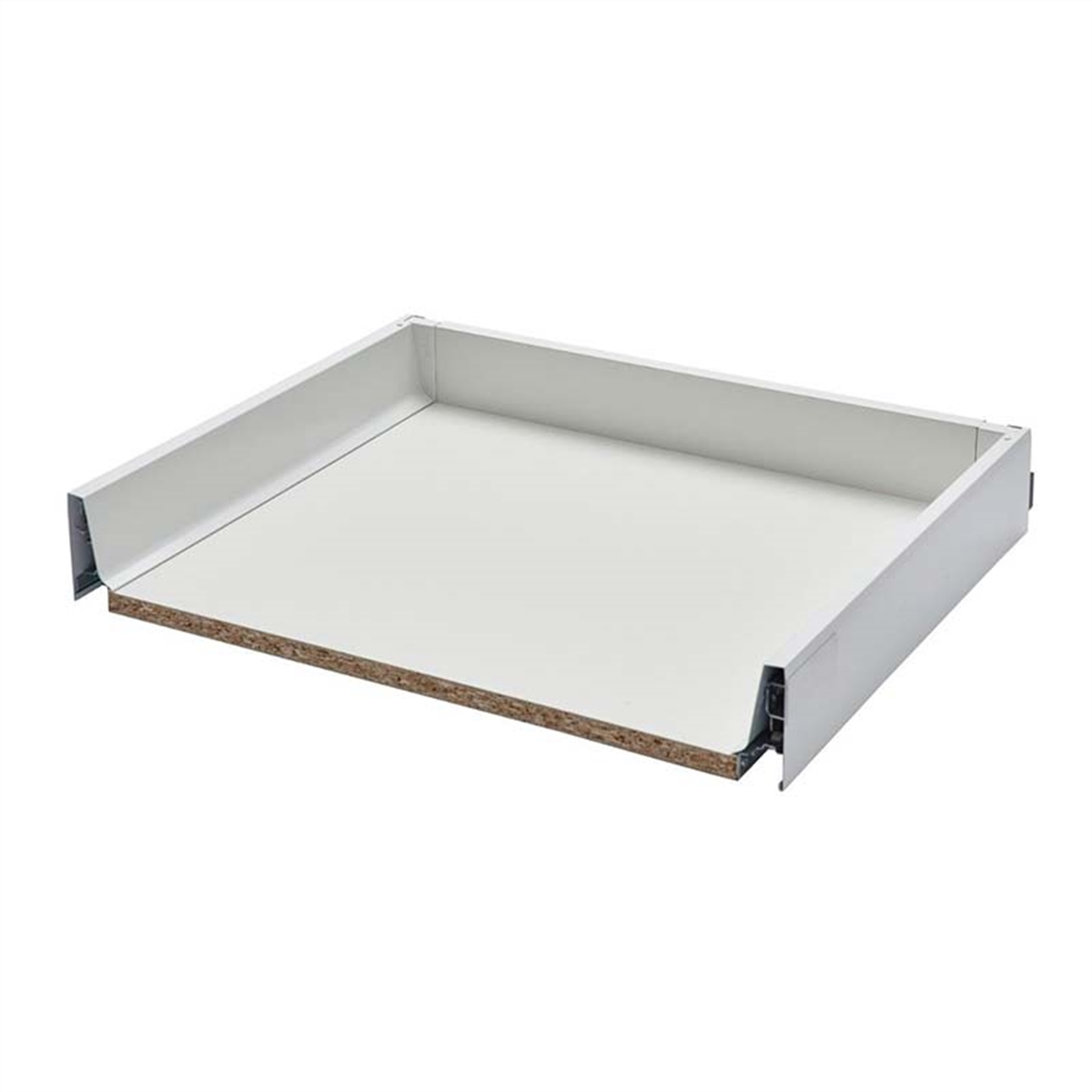

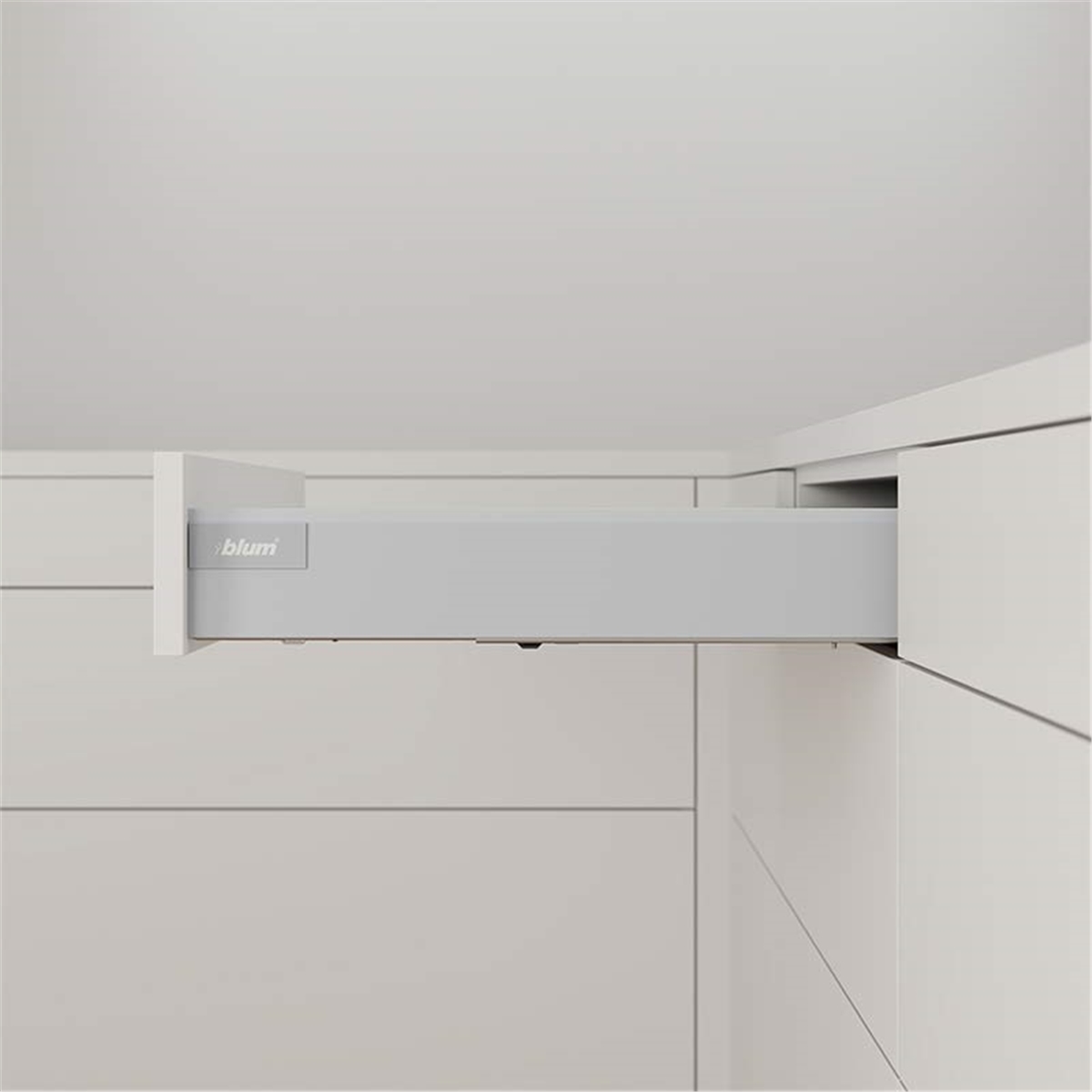

- Two Blum Antaro grey metal drawer boxes
- Full-extension, soft close drawer runners for smooth everyday operation
- Supplied with Blum 110 degree soft close hinges
- Includes one adjustable shelf and shelf supports
- Manufactured from durable 18mm MFC, including the back panel
- Adjustable 150mm kitchen cabinet legs included
- Features a 37mm rear service void for pipework and utilities
- Available in 700mm, 800mm, 900mm, 1000mm, 1100mm and 1200mm standard widths
- Made-to-measure cabinet sizes available
- Extensive choice of cabinet colours to complement kitchen doors
- Optional upgraded edging for additional durability
- Designed for two 140mm-high drawer fronts and two 570mm-high cupboard doors
Cabinet Dimensions:
- Cabinet Height: 720mm
- Assembled height including legs: 870mm
- Cabinet depth: 560mm
- Rear Void: 37mm
Recommended Door and Drawer Fronts:
- Drawer Front: Height 140mm - Door Height: 570mm
Recommended Door and Drawer Front Widths:
- 700mm = 2 x 346mm
- 800mm = 2 x 396mm
- 900mm = 2 x 446mm
- 1000mm = 2 x 496mm
- 1100mm = 2 x 546mm
- 1200mm = 2 x 596mm
- Please note drawer fronts and doors need to be ordered separately. Please consider if you need the assistance of a trade professonal for installation and fitting
