Product Description:

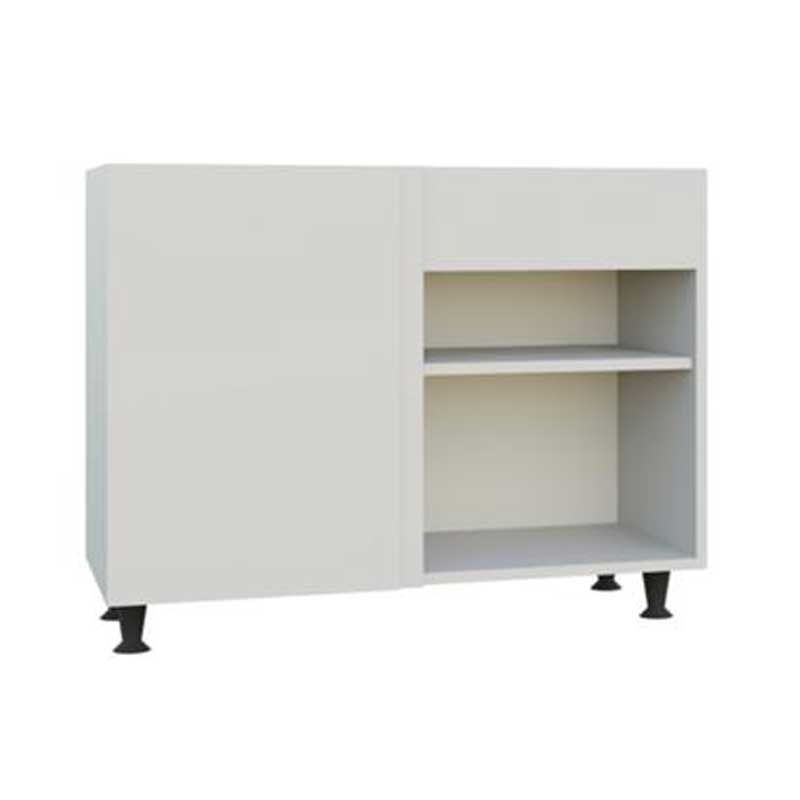

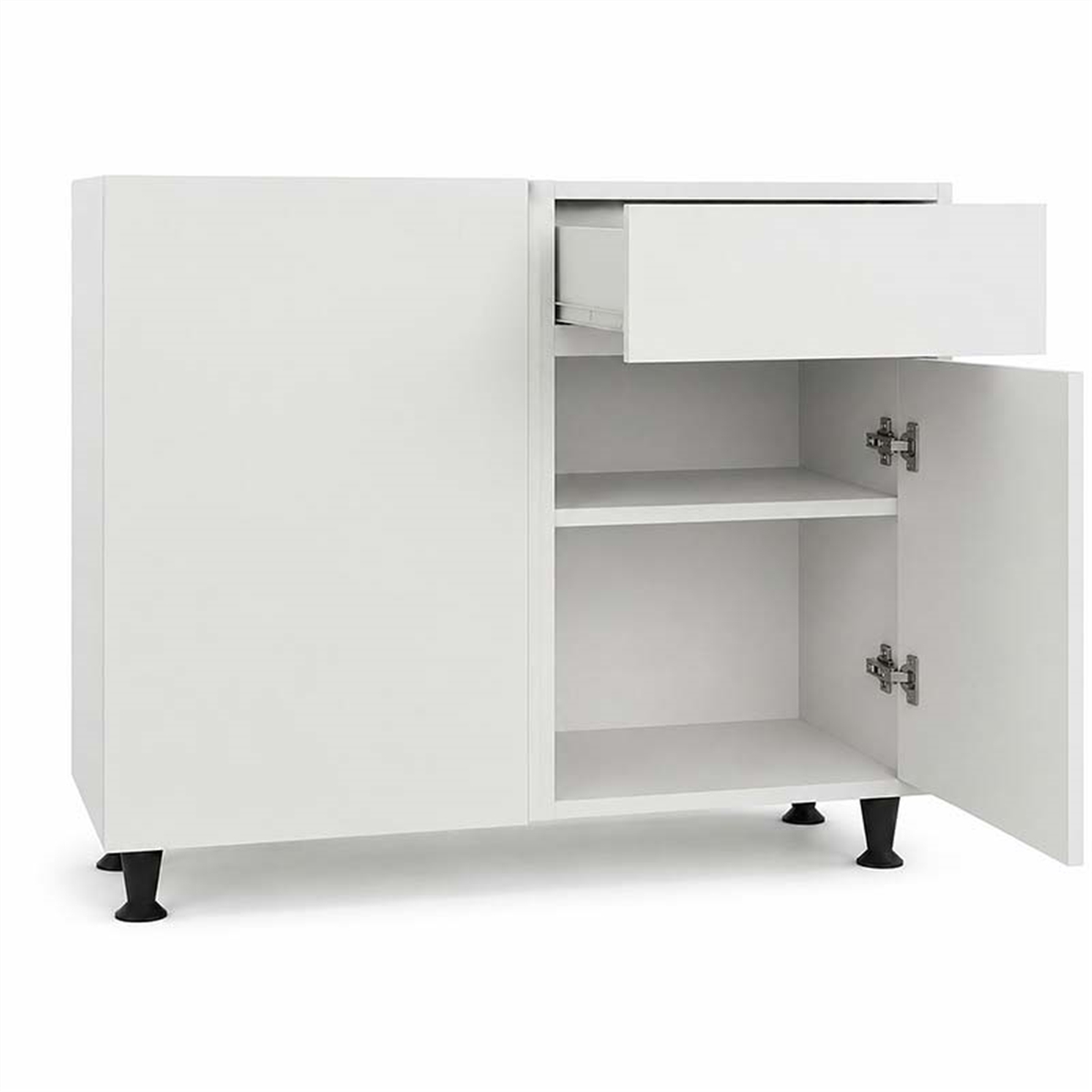

Create a continuous fitted-bedroom layout while making better use of difficult corner space with our Drawline Corner Base Cabinet. Its practical design combines an easy access upper drawer with generous cupboard storage below.
The lower cupboard includes an adjustable shelf for storing larger items and essentials. A colour matched blanking panel allows the cabinet to connect neatly with an adjoining run of fitted furniture.

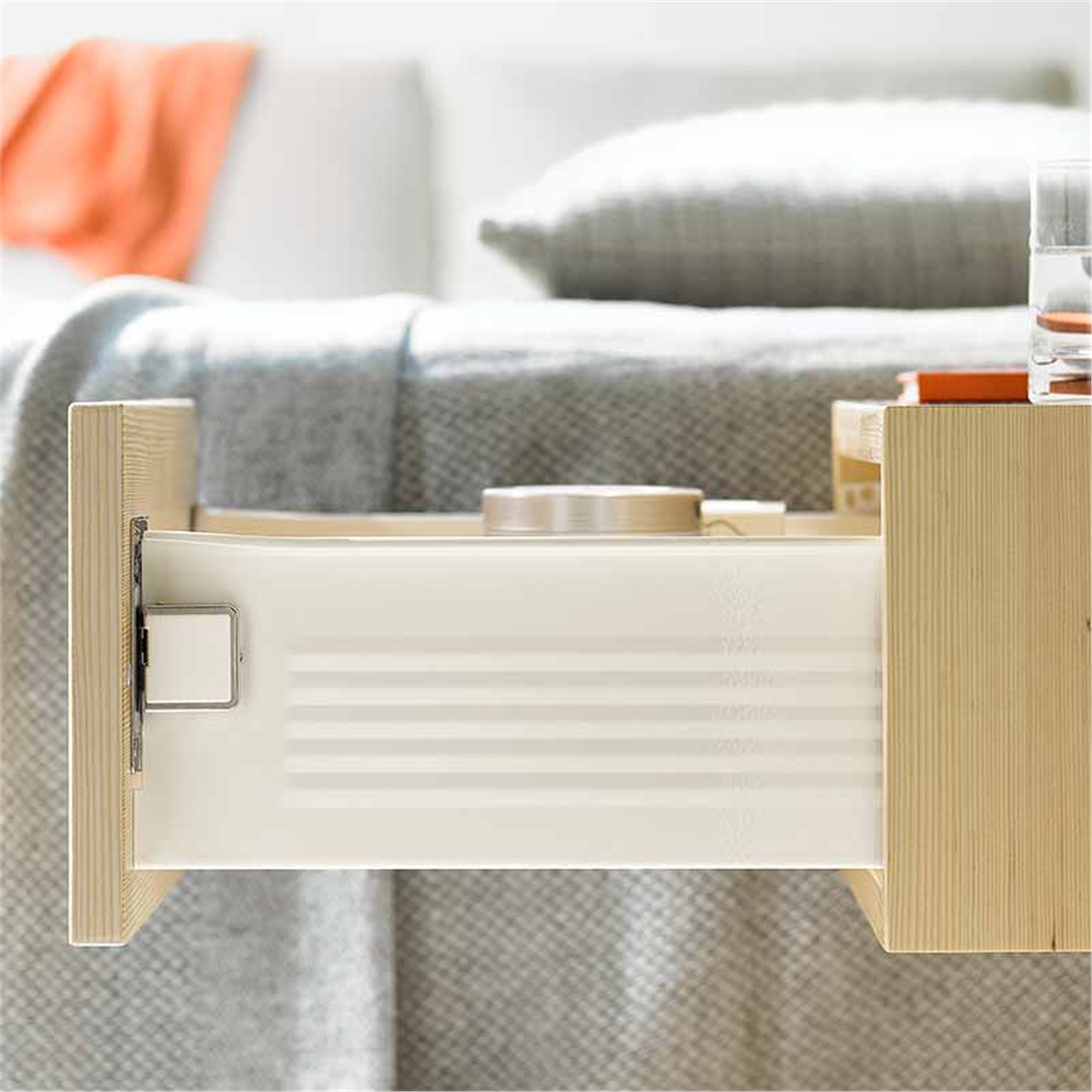

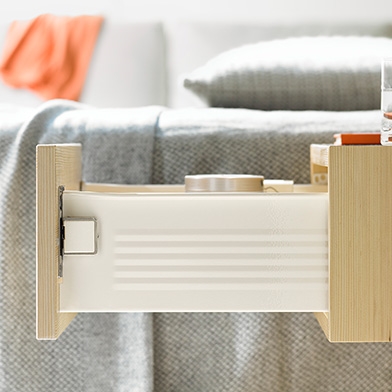

Fitted with premium Blum Antaro full-extension drawer and Blum blind corner soft-close hinges providing smooth, quiet and controlled operation for the cupboard door.
Manufactured from durable 18mm MFC, the cabinet is supplied assembled with drawer box and runners fitted. Standard and bespoke sizes are available in a wide selection of finishes.
Key Features:
- Designed to maximise bedroom corner space
- Upper soft-close Blum Antaro drawer
- Generous lower cupboard storage
- Internal storage shelf included
- Colour matched corner blanking panel
- Blum blind corner soft-close hinges included
- Standard and bespoke sizes available
- Strong 18mm MFC cabinet construction
- 27mm rear service void
- Four 100mm adjustable legs with plinth clips
- Colour matched 0.8mm ABS edging
- Optional 2mm edging upgrade to added protection
- Supplied assembled
- Made to order in the UK
- Delivery time 2-3 weeks
Standard Dimensions:
- Cabinet height: 660mm
- Adjustable leg height: 100mm
- Overall height excluding worktop: 760mm
- Standard depth: 460mm
- Standard widths: 800mm, 1000mm and 1200mm
- Recommended drawer front height: 115mm
- Recommended cupboard door height: 535mm
Planning and Front Size Guidance:
- Confirm whether the blanking panel is required on the left or right side before ordering
- Drawer front and door widths depend on the usable opening created by the corner configuration
- Each front should be 4mm narrower than its corresponding cabinet opening
- Check the position of the adjoining cabinet and ensure there is enough clearance for the drawer and door to open fully
- The worktop should project at least 20mm beyond the cabinet depth
Important Information:
- Drawer front, cupboard door, handles, worktop and plinth are not included
- Drawer front is not pre-drilled
- Accurate planning is essential for a corner installation
- This unit is not suitable for freestanding use and must be securely fixed to a wall and adjoining furniture
- Professional installation is recommended
